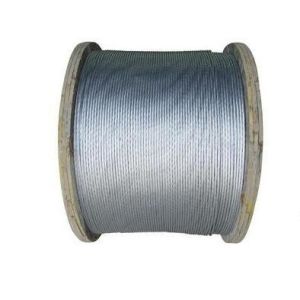

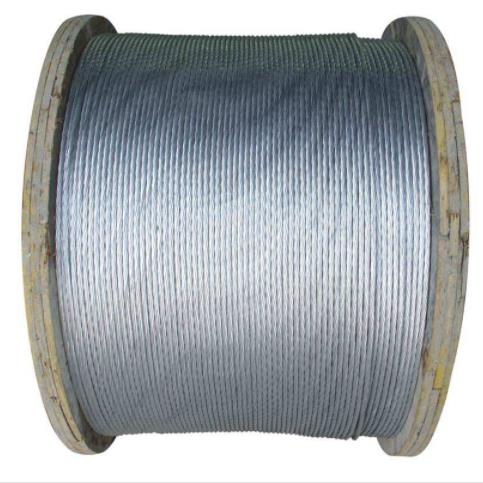

Galvanized Steel Stay Wire
Guy and Messanger strands
Galvanized Steel Strands
Galvanized Stay Wire strands is used for transmission line poles, ACSR core,messanger, guy wire, telegraph & telephone poles,etc
Construction: 1x7 / 1x19 / 1x37
ASTM A475 / ASTM B498 / BS 183
Application: For ground / earth wire and bare conductor core ACSR, guy wire and messanger.
No. of Wires: 7
Diameter: 3/16; 7/32; 1/4; 9/32; 5/16; 3/8; 7/16; 1/2; 9/16; 5/8 Inches;
Number
of
wires
in
strand | Stee
wire
diameter
mm | Norminal
diameter
of the
strand
mm | The cross
section
area of
strand
mm 2 | Nominal tensile streng of Gal.steel wire Mpa | Approximate
Weight
of stand
per
Kg/100M |
| 1175 | 1270 | 1370 | 1470 | 1570 |
| Breaking strength of strand KN≥ |
| 1×7 | 1.60 | 4.8 | 14.07 | 16.53 | 17.87 | 19.28 | 20.68 | 22.09 | 11.17 |
| 1.80 | 5.4 | 17.81 | 20.93 | 22.62 | 24.40 | 26.18 | 27.96 | 14.14 |
| 2.00 | 6.0 | 21.99 | 25.84 | 27.93 | 30.13 | 32.32 | 34.52 | 17.46 |
| 2.20 | 6.6 | 26.60 | 31.26 | 33.78 | 36.44 | 39.10 | 41.76 | 22.77 |
| 2.30 | 6.9 | 29.08 | 34.17 | 36.93 | 39.84 | 42.75 | 45.66 | 23.09 |
| 2.60 | 7.8 | 37.17 | 43.60 | 47.20 | 50.92 | 54.63 | 58.30 | 29.51 |
| 2.90 | 8.7 | 46.24 | 54.33 | 58.72 | 63.36 | 67.97 | 72.60 | 36.71 |
| 3.00 | 9.0 | 49.48 | 58.14 | 62.84 | 67.79 | 72.74 | 77.68 | 42.38 |
| 3.20 | 9.6 | 56.30 | 66.15 | 71.50 | 77.13 | 82.76 | 88.39 | 44.70 |
| 3.50 | 10.5 | 67.35 | 79.14 | 85.85 | 92.27 | 99.00 | 105.74 | 53.48 |
| 3.80 | 11.4 | 79.39 | 93.28 | 100.82 | 108.76 | 116.70 | 124.64 | 63.04 |
Number
of
wires
in
strand | Stee
wire
diameter
mm | Norminal
diameter
of the
strand
mm | The cross
section
area of
strand
mm 2 | Nominal tensile streng of Gal.steel wire Mpa | Approximate
Weight
of stand
per
Kg/100M |
| 1175 | 1270 | 1370 | 1470 | 1570 |
| Breaking strength of strand KN≥ |
| 1×19 | 1.60 | 8.0 | 38.2 | 44.88 | 48.51 | 52.38 | 56.15 | 59.97 | 30.40 |
| 1.80 | 9.0 | 48.35 | 56.81 | 61.40 | 66.24 | 71.07 | 75.91 | 38.49 |
| 2.00 | 10.0 | 59.69 | 70.14 | 75.81 | 81.77 | 87.74 | 93.71 | 47.51 |
| 2.20 | 11.6 | 72.22 | 84.86 | 91.71 | 98.94 | 106.16 | 113.39 | 56.69 |
| 2.30 | 11.5 | 78.94 | 92.75 | 100.25 | 108.15 | 116.04 | 123.94 | 62.84 |
| 2.60 | 13.0 | 100.88 | 118.53 | 125.12 | 138.20 | 148.29 | 158.38 | 80.30 |
| 2.90 | 14.5 | 125.50 | 147.46 | 159.38 | 171.93 | 184.48 | 197.03 | 99.90 |
| 3.00 | 15.0 | 134.30 | 157.80 | 170.56 | 183.99 | 197.42 | 210.85 | 105.43 |
| 3.20 | 16.0 | 152.81 | 179.55 | 194.06 | 209.35 | 224.63 | 239.91 | 121.64 |
All steel strands are smooth, uniform and free from all defects, such as spills, splits, die marks, scratches and abrasion.
The earth wire is suitably packed before dispatch in non-returnable wooden drums or as per customer's requirement.
