6M Messenger Wire

Product Categories
Hangfan Electric Power Co.,Ltd
Contact Now

6M Messenger Wire

Place of Origin : Henan, China

Brand Name : Aobest

Model Number : galvanized steel wire

Insulation Material : No

Type : LOW VOLTAGE

Application : Overhead

Conductor Material : steel wire

Jacket : No

Product name : Guy wire

Certificate : ISO9001/ISO14001 /OHSAS18001/CCC

Standard : BS IEC ASTM DIN

Package : Wooden Drum

Packaging Details : standard export wooden drum/steel wooden drum or according to clients' requirment

Port : Qingdao/Shanghai port

Supply Ability : 650000 Meter/Meters per Week

MOQ : 10 kilometers

Price : $1,000.00 - $1,650.00/kilometers

Contact Now

Specifications for Messenger Wire/high tensile strength Galvanized Steel wire for ACSR Core

Hot Dipped Galvanized Steel Wire:

galvanized steel guy wire
Excellent flexibility and softness
widely used
zinc coating 100g/m2, 200g/m2 and 300g/m2

Galvanized wire for armouring cable:

Material: Q195, SAE1006, BP05

We can also produce other wire diameter with any zinc coating.

Packing: 25kg-1000kg/Coil, or by Wooden pallet or Scroll packing. Outer with plastic film and weaving bag.

Features/Usage: This kind of wire by special technical makes it very soft; excellet Electro resistance and best Elongation. it is best material to making Armoring Cable.

Constructions:

Number
of
wires
in
strand		 Stee
wire
diameter
mm		 Norminal
diameter
of the
strand
mm		 The cross
section
area of
strand
mm 2		 Nominal tensile streng of Gal.steel wire Mpa Approximate
Weight
of stand
per
Kg/100M
1175 1270 1370 1470 1570
Breaking strength of strand KN≥
1×7 1.60 4.8 14.07 16.53 17.87 19.28 20.68 22.09 11.17
1.80 5.4 17.81 20.93 22.62 24.40 26.18 27.96 14.14
2.00 6.0 21.99 25.84 27.93 30.13 32.32 34.52 17.46
2.20 6.6 26.60 31.26 33.78 36.44 39.10 41.76 22.77
2.30 6.9 29.08 34.17 36.93 39.84 42.75 45.66 23.09
2.60 7.8 37.17 43.60 47.20 50.92 54.63 58.30 29.51
2.90 8.7 46.24 54.33 58.72 63.36 67.97 72.60 36.71
3.00 9.0 49.48 58.14 62.84 67.79 72.74 77.68 42.38
3.20 9.6 56.30 66.15 71.50 77.13 82.76 88.39 44.70
3.50 10.5 67.35 79.14 85.85 92.27 99.00 105.74 53.48
3.80 11.4 79.39 93.28 100.82 108.76 116.70 124.64 63.04

Number
of
wires
in
strand		 Stee
wire
diameter
mm		 Norminal
diameter
of the
strand
mm		 The cross
section
area of
strand
mm 2		 Nominal tensile streng of Gal.steel wire Mpa Approximate
Weight
of stand
per
Kg/100M
1175 1270 1370 1470 1570
Breaking strength of strand KN≥
1×19 1.60 8.0 38.2 44.88 48.51 52.38 56.15 59.97 30.40
1.80 9.0 48.35 56.81 61.40 66.24 71.07 75.91 38.49
2.00 10.0 59.69 70.14 75.81 81.77 87.74 93.71 47.51
2.20 11.6 72.22 84.86 91.71 98.94 106.16 113.39 56.69
2.30 11.5 78.94 92.75 100.25 108.15 116.04 123.94 62.84
2.60 13.0 100.88 118.53 125.12 138.20 148.29 158.38 80.30
2.90 14.5 125.50 147.46 159.38 171.93 184.48 197.03 99.90
3.00 15.0 134.30 157.80 170.56 183.99 197.42 210.85 105.43
3.20 16.0 152.81 179.55 194.06 209.35 224.63 239.91 121.64

We can provide more info than above, if needed.

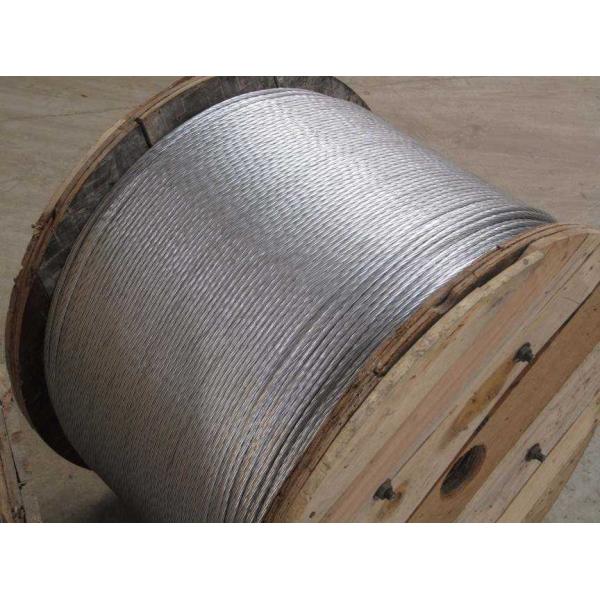

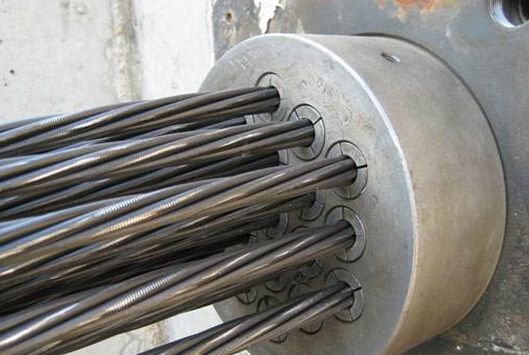

6M Messenger Wire6M Messenger Wire6M Messenger Wire6M Messenger Wire

Any inquiry or questions, pls feel free to contact me.~~

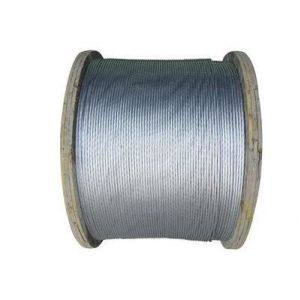

Quality 6M Messenger Wire for sale

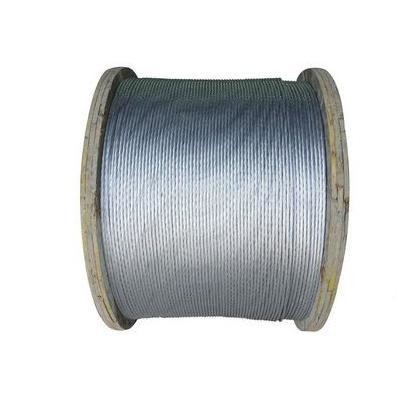

6M Messenger Wire Images
