6mm Messenger Wire

Product Categories
Hangfan Electric Power Co.,Ltd
Contact Now

6mm Messenger Wire

Place of Origin : Henan, China

Brand Name : Aobest

Model Number : guy wire strand

Type : LOW VOLTAGE

Application : Industrial

Conductor Material : steel wire

Jacket : PE

Product name : Guy wire

Certificate : ISO9001/ISO14001 /OHSAS18001/CCC

Standard : BS IEC ASTM DIN

Conductor : Steel wire

Package : Wooden Drum

Packaging Details : standard export wooden drum/steel wooden drum

Port : Qingdao/Shanghai port

Supply Ability : 6000 Ton/Tons per Week

MOQ : 10 kilometers

Price : $100.00 - $1,650.00/kilometers

Contact Now

Specifications for Messenger Wire

galvanized steel guy wire
Excellent flexibility and softness
widely used
zinc coating 100g/m2, 200g/m2 and 300g/m2

Guy wire/stay wire/galvanized steel wire rope galvanized steel wire strand

Galvanized Steel Stay Wire
Guy and Messanger strands
Galvanized Steel Strands

Galvanized Stay Wire strands is used for transmission line poles, ACSR core,messanger, guy wire, telegraph & telephone poles,etc
Construction: 1x7 / 1x19 / 1x37
ASTM A475 / ASTM B498 / BS 183

Application: For ground / earth wire and bare conductor core ACSR, guy wire and messanger.

No. of Wires: 7

Diameter: 3/16; 7/32; 1/4; 9/32; 5/16; 3/8; 7/16; 1/2; 9/16; 5/8 Inches;

Number
of
wires
in
strand		 Stee
wire
diameter
mm		 Norminal
diameter
of the
strand
mm		 The cross
section
area of
strand
mm 2		 Nominal tensile streng of Gal.steel wire Mpa Approximate
Weight
of stand
per
Kg/100M
1175 1270 1370 1470 1570
Breaking strength of strand KN≥
1×7 1.60 4.8 14.07 16.53 17.87 19.28 20.68 22.09 11.17
1.80 5.4 17.81 20.93 22.62 24.40 26.18 27.96 14.14
2.00 6.0 21.99 25.84 27.93 30.13 32.32 34.52 17.46
2.20 6.6 26.60 31.26 33.78 36.44 39.10 41.76 22.77
2.30 6.9 29.08 34.17 36.93 39.84 42.75 45.66 23.09
2.60 7.8 37.17 43.60 47.20 50.92 54.63 58.30 29.51
2.90 8.7 46.24 54.33 58.72 63.36 67.97 72.60 36.71
3.00 9.0 49.48 58.14 62.84 67.79 72.74 77.68 42.38
3.20 9.6 56.30 66.15 71.50 77.13 82.76 88.39 44.70
3.50 10.5 67.35 79.14 85.85 92.27 99.00 105.74 53.48
3.80 11.4 79.39 93.28 100.82 108.76 116.70 124.64 63.04

Number
of
wires
in
strand		 Stee
wire
diameter
mm		 Norminal
diameter
of the
strand
mm		 The cross
section
area of
strand
mm 2		 Nominal tensile streng of Gal.steel wire Mpa Approximate
Weight
of stand
per
Kg/100M
1175 1270 1370 1470 1570
Breaking strength of strand KN≥
1×19 1.60 8.0 38.2 44.88 48.51 52.38 56.15 59.97 30.40
1.80 9.0 48.35 56.81 61.40 66.24 71.07 75.91 38.49
2.00 10.0 59.69 70.14 75.81 81.77 87.74 93.71 47.51
2.20 11.6 72.22 84.86 91.71 98.94 106.16 113.39 56.69
2.30 11.5 78.94 92.75 100.25 108.15 116.04 123.94 62.84
2.60 13.0 100.88 118.53 125.12 138.20 148.29 158.38 80.30
2.90 14.5 125.50 147.46 159.38 171.93 184.48 197.03 99.90
3.00 15.0 134.30 157.80 170.56 183.99 197.42 210.85 105.43
3.20 16.0 152.81 179.55 194.06 209.35 224.63 239.91 121.64

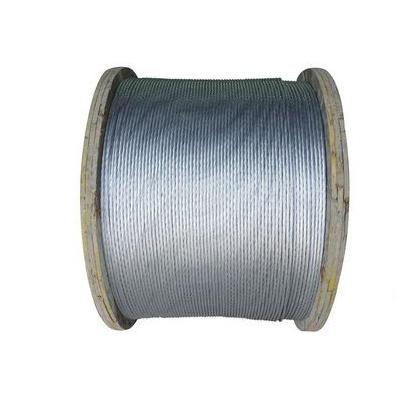

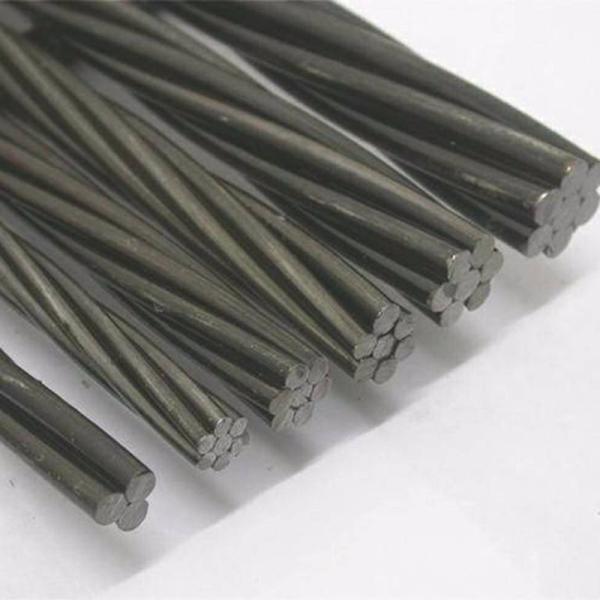

6mm Messenger Wire6mm Messenger Wire

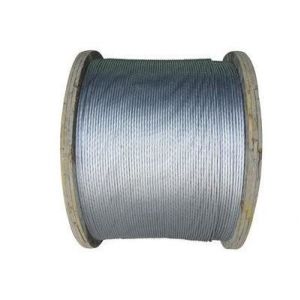

Quality 6mm Messenger Wire for sale
