HIGH Tensile galvanized steel wire BARE CABLE

Steel Grade : high carbon wire rod

Standard : AiSi

Place of Origin : Henan, China

Type : galvanized

Application : Construction

Alloy Or Not : Non-Alloy

Special Use : Cold Heading Steel

Model Number : 1X3 1X4 1X7 1X19 1X37

Brand Name : Aobest

Grade : STEEL

Delivery Time : 8-14 days

Wire Gauge : 1.57mm-4.7mm

Certificate : ISO9001/BV

standard : IEC

Packaging Details : standard export wooden drum/steel wooden drum or according to clients' requirment

Port : Qingdao/Shanghai port

Supply Ability : 650000 Meter/Meters per Week

MOQ : 10 kilometers

Price : $1,650.00/kilometers 10-49999 kilometers

Contact Now

Guy wire/stay wire/galvanized steel wire rope galvanized steel wire strand

Galvanized Steel Stay Wire
Guy and Messanger strands
Galvanized Steel Strands

Galvanized Stay Wire strands is used for transmission line poles, ACSR core,messanger, guy wire, telegraph & telephone poles,etc
Construction: 1x7 / 1x19 / 1x37
ASTM A475 / ASTM B498 / BS 183

Application: For ground / earth wire and bare conductor core ACSR, guy wire and messanger.

No. of Wires: 7 , 19, 37

Diameter: 3/16; 7/32; 1/4; 9/32; 5/16; 3/8; 7/16; 1/2; 9/16; 5/8 Inches;

Constructions:
1 x 3 diameter of wire in strand: 2.64 to 4.19mm
1 x 7 diameter of wire in strand: 1.04 to 5.26mm
1 x 19 diameter of wire in strand: 2.64 to 5.08mm
1 x 37 diameter of wire in strand: 3.63 to 4.55mm

Number
of
wires
in
strand		 Stee
wire
diameter
mm		 Norminal
diameter
of the
strand
mm		 The cross
section
area of
strand
mm 2		 Nominal tensile streng of Gal.steel wire Mpa Approximate
Weight
of stand
per
Kg/100M
1175 1270 1370 1470 1570
Breaking strength of strand KN≥
1×7 1.60 4.8 14.07 16.53 17.87 19.28 20.68 22.09 11.17
1.80 5.4 17.81 20.93 22.62 24.40 26.18 27.96 14.14
2.00 6.0 21.99 25.84 27.93 30.13 32.32 34.52 17.46
2.20 6.6 26.60 31.26 33.78 36.44 39.10 41.76 22.77
2.30 6.9 29.08 34.17 36.93 39.84 42.75 45.66 23.09
2.60 7.8 37.17 43.60 47.20 50.92 54.63 58.30 29.51
2.90 8.7 46.24 54.33 58.72 63.36 67.97 72.60 36.71
3.00 9.0 49.48 58.14 62.84 67.79 72.74 77.68 42.38
3.20 9.6 56.30 66.15 71.50 77.13 82.76 88.39 44.70
3.50 10.5 67.35 79.14 85.85 92.27 99.00 105.74 53.48
3.80 11.4 79.39 93.28 100.82 108.76 116.70 124.64 63.04

Number
of
wires
in
strand		 Stee
wire
diameter
mm		 Norminal
diameter
of the
strand
mm		 The cross
section
area of
strand
mm 2		 Nominal tensile streng of Gal.steel wire Mpa Approximate
Weight
of stand
per
Kg/100M
1175 1270 1370 1470 1570
Breaking strength of strand KN≥
1×19 1.60 8.0 38.2 44.88 48.51 52.38 56.15 59.97 30.40
1.80 9.0 48.35 56.81 61.40 66.24 71.07 75.91 38.49
2.00 10.0 59.69 70.14 75.81 81.77 87.74 93.71 47.51
2.20 11.6 72.22 84.86 91.71 98.94 106.16 113.39 56.69
2.30 11.5 78.94 92.75 100.25 108.15 116.04 123.94 62.84
2.60 13.0 100.88 118.53 125.12 138.20 148.29 158.38 80.30
2.90 14.5 125.50 147.46 159.38 171.93 184.48 197.03 99.90
3.00 15.0 134.30 157.80 170.56 183.99 197.42 210.85 105.43
3.20 16.0 152.81 179.55 194.06 209.35 224.63 239.91 121.64

We can provide more info than above, if needed. Customer's specification are available upon request.

HIGH Tensile galvanized steel wire BARE CABLE

Please contact me freely; maybe I’ll give you a big surprise. ^.^


Quality HIGH Tensile galvanized steel wire BARE CABLE for sale

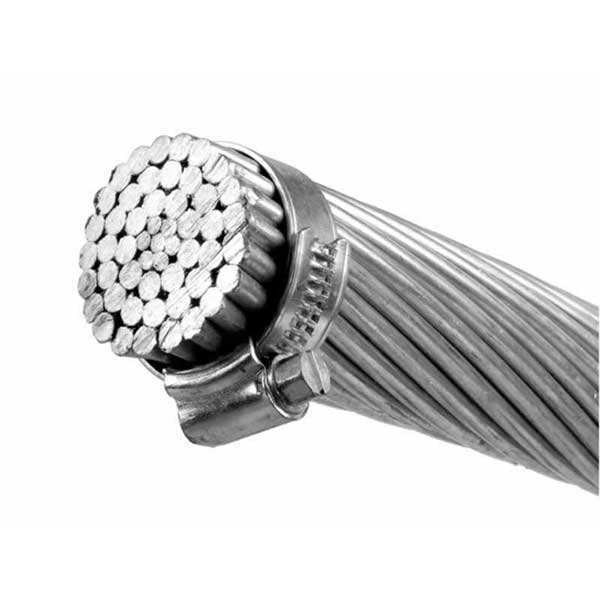

HIGH Tensile galvanized steel wire BARE CABLE Images
