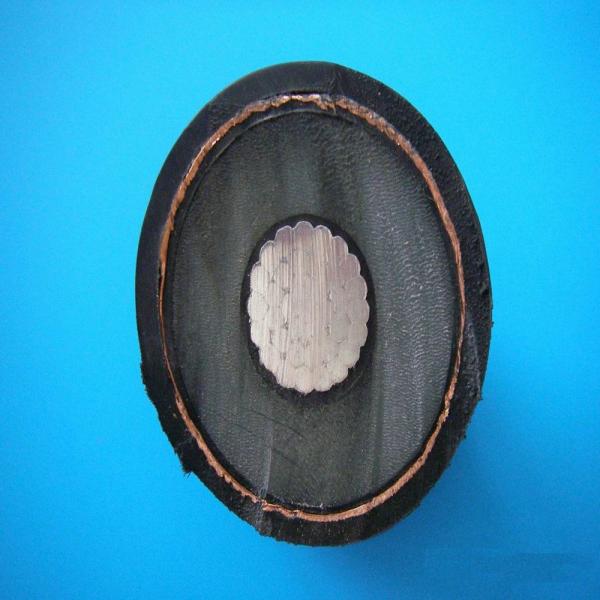

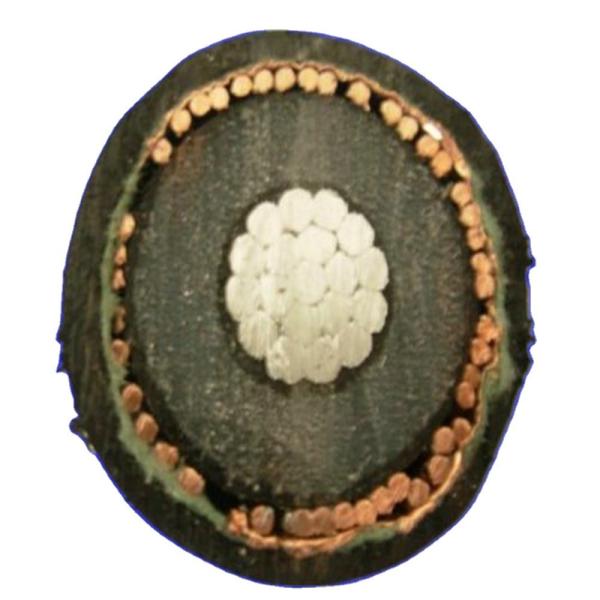

240mm2 Single Core CU/AL Conductor XLPE Insulated Armoured YJSV YJLSV Power Cable

Place of Origin : Henan, China

Brand Name : AOBEST

Model Number : XLPE

Insulation Material : xlpe

Type : LOW VOLTAGE

Application : Underground

Conductor Material : Copper

Jacket : PVC

Size : 150 sq.mm

Product name : 12/20kv 1 core CU/AL conductor XLPE insulated YJSV YJLSV power cable

Standard : ASTM

Color : Black

Sheath : PVC

Core : 1/3

MOQ : 1000 Meters

Certificate : ISO9001/ISO14001/CCC

package way : Wooden steel drum

production time : 10 days

Delivery time : 7-15days

Packaging Details : 1:standard export wooden drum/steel wooden drum
2: upon your request

Port : shanghai

Supply Ability : 50 Kilometer/Kilometers per Month

MOQ : 1000 meters

Price : $29.00/meters >=1000 meters

Contact Now

Company Information

About Company:https://aobest.en.alibaba.com/?spm=a2700.8304367.0.0.cjXsPq

Zhengzhou Aobest Electronic Technology Co., Ltd is a top manufacturer for Power cables and Electric wires for more than 20 years in China.
Our main products include as belows:

1: Electric Wire 450/750V
2: AAC, ACSR, AAAC, Copper Clad Aluminum,
3: Galvanized Steel Wire strand, Guy wire
4: PVC insulated Cable. 600/1000V
5: XLPE insulated Cable 600/1000V
6: Over head cable, ABC cable (Duplex, Triplex, Quadruplex cable)
7: Rubber cables
8: Control cable, instrument cable
9: High voltage cable, 11KV, 20KV, 33KV, up to 100KV
10:Glass insulator LXAP-70/120 LXAP-160/240
11:Glass insulator LXDP-70/100
240mm2 Single Core CU/AL Conductor XLPE Insulated Armoured YJSV YJLSV Power Cable
Product Description

Cross-sectional area mm2 conductor weight kg/km
number diameter mm YJSV YJLSV
35 7 7.20 983 762
50 9 8.30 1152 837
70 19 10.00 1399 957
95 19 11.6 1675 1075
120 19 13.00 1960 1202
150 19 14.60 2282 1335
185 37 16.2 2666 1498
240 36 18.6 3241 1726
300 36 20.6 3873 1979
400 60 23.8 4927 2401
500 60 26.60 5996 2870
630 60 30.24 7313 3374
800 89 34.00 9008 4007

240mm2 Single Core CU/AL Conductor XLPE Insulated Armoured YJSV YJLSV Power Cable240mm2 Single Core CU/AL Conductor XLPE Insulated Armoured YJSV YJLSV Power Cable

240mm2 Single Core CU/AL Conductor XLPE Insulated Armoured YJSV YJLSV Power Cable240mm2 Single Core CU/AL Conductor XLPE Insulated Armoured YJSV YJLSV Power Cable240mm2 Single Core CU/AL Conductor XLPE Insulated Armoured YJSV YJLSV Power Cable240mm2 Single Core CU/AL Conductor XLPE Insulated Armoured YJSV YJLSV Power Cable240mm2 Single Core CU/AL Conductor XLPE Insulated Armoured YJSV YJLSV Power Cable

Packaging & Shipping

1:standard export wooden drum/steel wooden drum
2: upon your request

240mm2 Single Core CU/AL Conductor XLPE Insulated Armoured YJSV YJLSV Power Cable
