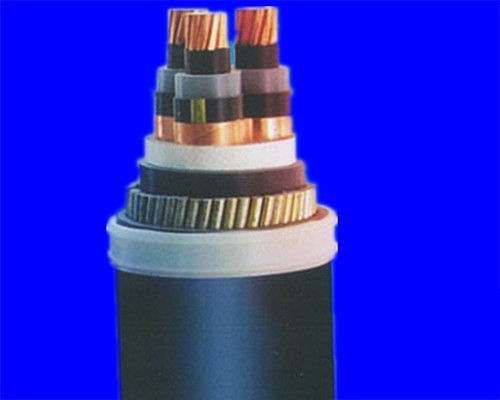

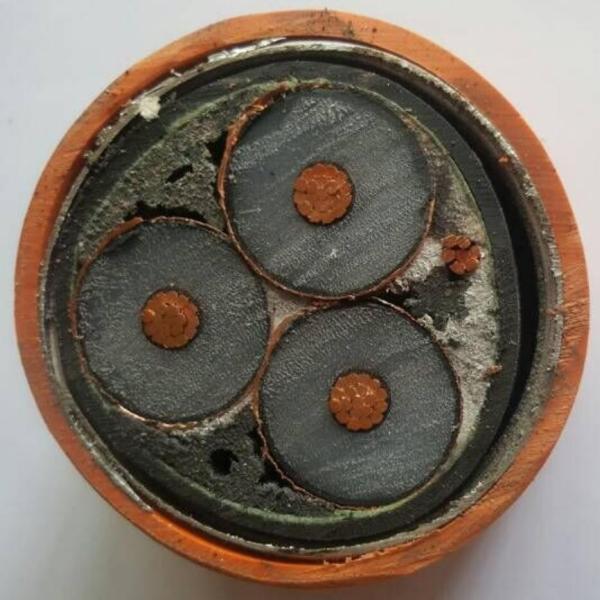

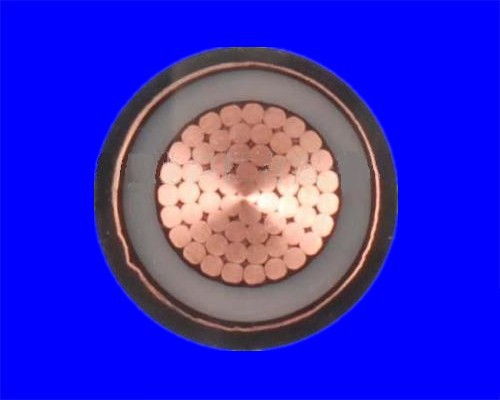

superior quality 35KV high voltage xlpe insulated power cable:
About Company:
Zhengzhou Aobest Electronic Technology Co., Ltd is a top manufacturer for Power cables and Electric wires for more than 20 years in China.
Our main products include as belows:
1: AAC, ACSR, AAAC, guy wire
2: PVC insulated power cables.
3: XLPE insulated power cables
4: Armored power cables
5: Overhead insulated cables
6: Electric wires
7: Control cables and other instrument cables
Product Description
35 KV PVC insulated power cable is used for electric power transmission and distribution lines
35 KV PVC insulated power cable
1) Standard :IEC60502,GB/T 12706
2).Voltage :1-35KV
3).Specification:
| Type | Designation | Application |
| VV | Copper conductor ,PVC insulated ,PVC sheathed power cable | For laying indoors, in tunnel or cable trench,unable to bear extermal mechanical forces. Single core cable is not permissible to lay in magnetic duct |
| VLV | Aluminium conductor ,PVC insulated ,PVC sheathed power cable |
| VY | Copper conductor, PVC insulated, PE sheathed power cable |
| VLY | Aluminium conductor ,PVC insulated ,PE sheathed power cable |
| VV22 | Copper conductor ,PVC insulated ,steel tape armoured ,PVC sheathed power cable | For laying indoors, in cable trench or direct in ground ,able to bear external mechanical forces, but unable to bear pulling force |
| VLV22 | Aluminium conductor ,PVC insulated ,steel tape armoured ,PVC sheathed power cable |
| VV23 | Copper conductor ,PVC insualted ,steel tape armoured ,PE sheathed power cable |
| VLV23 | Alunminium conductor ,PVC insulated ,steel tape armoured ,PE sheathed power cable |
| VV32 | Copper conductor, PVC insulated, steel wire armoured,PVC insulated power cable | For laying indoors, in cable or direct in ground ,able to bear external mechanical forces, but unable to bear large pulling forces |
| VLV32 | Aluminium conductor, PVC insulated ,steel tape armoured ,PVC sheathed power cable |
| VV33 | Copper conductor, PVC insulated steel wire armoured , PE sheathed power cable |
| VLV33 | Aluminium conductor , PVC insulated , streel wire armoured ,PE sheathed power cable |
| Note: The armoured single core cables is only used for D.C.system. As for A.C.system,non-magnetic armored material should be applied |
4).nominal cross-sectional areas:1.5 mm2 , 2.5 mm2 ,4 mm2 , 6 mm2 , 10 mm2 , 16 mm2 ,25 mm2 , 35 mm2 , 50 mm2 ,70 mm2 , 95 mm2 ,120 mm2 ,150 mm2 ,185 mm2 ,240 mm2 ,300 mm2 400 mm2 500 mm2 630 mm2 800 mm2
5)production range: single core cable from 1.5 mm2 to 800 mm2,muli-core cable from 1.5 mm2 to 400 mm2
6).operating characteristics:
Rated power-frequency voltage u0/u:35KV
Max permissible continuous operating temperature of conductor 70
Max short-circuit temperature of the conductor shall not exceed (Max 5 seconds duration): cross-section of conductor 300 mm2
The anbient temperature under installations should not be below 0
The bending radius of single core cable should not be less than 20 times of the cable diameter ,the bending radius of multi-core cable should not be less than 15 times of the cable diameter
Packaging & Shipping
1:standard export wooden drum/steel wooden drum
2: upon your request
Our Services
Our company is a professional supplier of various kinds of cables for over 10 years.
The quality of our products are guaranteed. They are all with CCC, CE, CB and RoHS certificates.
- Any inquiries will be replied within 24 hours.
- OEM/ODM available.
1) Printing your logo on the cable.
2) Printing your logo on the pull box, wooden drum according to your design
3) Any your idea on cable, packing box are available.
- High quality, reasonable and competitive price, fast lead time.
- Good after-Sale Service.
1) All products will have been strictly Quality Checked in house before packing.
2) All products will be well packed before shipping.
- Faster delivery.:Sample order in stock, and 3-7 days for bulk production.
- Strong technical support (technical data, drawing, etc.)
- Free sample is available with economic express fee.
- Payment:We can accept payment methods: L/C, T/T, Western Union,other payment can negotiation.
Company Information
About Us:
Zhengzhou Aobest Electronic Technology Co., Ltd. is a professional company, located in Zhengzhou, China. We provide power cables and wires.
Our main products: High and low voltage XLPE insulated Cables, PVC insulated cables, steel wire armored cables, steel tape armored cables, ABC cables, Overhead insulated cables, AAC, AAAC & ACSR cables, Copper wires, Galvanized steel wire strands, PVC insulated wires and flexible wires, Rubber insulated cables, underground cables, control cables, aluminum sheets, etc.
The international standard we can follow: ASTM, IEC, BS, GB, DIN and AS/NZS standards and other standards.
We can provide OEC service.
Since our establishment, we have insisted on the tenet of "scientific management" and tried our best to improve product quality. We control every chain especially the process of production strictly, ensuring the unqualified raw materials and semi-finished products not enter into the next operation. We guarantee that all the finished products meet the requirements of our clients.
Our sales networks cover the whole world. Our products sell well in Australia, the Philippines, Vietnam, Thailand, Myanmar, Kenya, South Africa, Nigeria, Tanzania, the USA, Singapore, the UK, Italy, Bolivia, Chile and European countries. Our company has established long-term cooperation and friendship with clients worldwide.
FAQ
- Q: Could you offer the Type Test Report?
- A -Yes, we could offer the Type Test Report issued by Chinese laboratories.
- Q:Have you ever supplied the cables to our country?
- A: -Our cables have been supplied to many countries and regions, such as, Singapore, Taiwan, Hong Kong, Kenya, Congo, France, Cyprus, Honduras, etc.
- Q: According to which standards can you produce cables?
- A: -GB/T, IEC, EN.
- Q: What is your MOQ?
- A: -The MOQ is different, as the different cable type.
- Q: Do you have ready cables?
- A: -Some normal cables have the inventory, most cables are produced according to your requirements.
- Q: What's the tolerance of delivery length for each coil?
- A: -±0.005m.
- Q: What are your main products?
- A: -Our main products are the PVC insulated cable, power cable, and electric wire.
