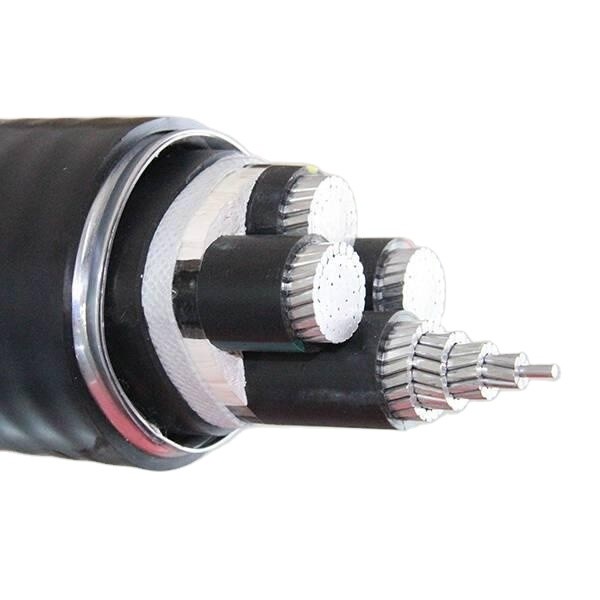

Underground Application 3Core 50MM2 CU/AL XLPE Low Voltage Power Cable with PVC Insulation

Product Categories

Hangfan Electric Power Co.,Ltd

Contact Now

Underground Application 3Core 50MM2 CU/AL XLPE Low Voltage Power Cable with PVC Insulation

Name: Underground Application 3Core 50MM2 CUAL XLPE Low Voltage Power Cable with PVC Insulation
Brand: AOBEST
Price: 67.80 USD

Quality Underground Application 3Core 50MM2 CU/AL XLPE Low Voltage Power Cable with PVC Insulation for sale

Place of Origin : Henan, China

Brand Name : AOBEST

Model Number : XLPE

Insulation Material : xlpe

Type : LOW VOLTAGE

Application : Underground

Conductor Material : Copper

Jacket : PVC

Size : 50 mm2

Product name : 18/20/30kv CU /AL XLPE 50MM2 YJV22 YJLV22 YJV23 YJLV23 power cable

Standard : ASTM

Color : Black

Sheath : PVC

Core : 1/3

MOQ : 1000 Meters

Certificate : ISO9001/ISO14001/CCC

package way : Wooden steel drum

production time : 10 days

Delivery time : 7-15days

MOQ : 1000 meters

Price : $67.80/meters >=1000 meters

Contact Now

Company Information

About Company:https://aobest.en.alibaba.com/?spm=a2700.8304367.0.0.cjXsPq

Zhengzhou Aobest Electronic Technology Co., Ltd is a top manufacturer for Power cables and Electric wires for more than 20 years in China.
Our main products include as belows:

1: Electric Wire 450/750V
2: AAC, ACSR, AAAC, Copper Clad Aluminum,
3: Galvanized Steel Wire strand, Guy wire
4: PVC insulated Cable. 600/1000V
5: XLPE insulated Cable 600/1000V
6: Over head cable, ABC cable (Duplex, Triplex, Quadruplex cable)
7: Rubber cables
8: Control cable, instrument cable
9: High voltage cable, 11KV, 20KV, 33KV, up to 100KV

10:Glass insulator LXAP-70/120 LXAP-160/240

11:Glass insulator LXDP-70/100

Underground Application 3Core 50MM2 CU/AL XLPE Low Voltage Power Cable with PVC Insulation

Product Description

Cross-sectional area mm2	conductor		weight kg/km
Cross-sectional area mm2	number	diameter mm	YJV22	YJLV22	YJV23	YJLV23
50	9	8.30	2128	1812	2020	1704
70	19	10.00	2421	1979	2307	1865
95	19	11.6	2770	2170	2645	2046
120	19	13.00	3107	2349	2972	2214
150	19	14.60	3507	2560	3366	2630
185	37	16.2	3951	2783	3978	2934
240	36	18.6	4611	3096	4449	3265
300	36	20.6	5336	3442	5159	3762
400	60	23.8	6484	3959	6288	4347
500	60	26.60	7693	4567	7473	4963
630	60	30.24	9145	5207	8902	5748
800	89	34.00	11030	6028	10750

Underground Application 3Core 50MM2 CU/AL XLPE Low Voltage Power Cable with PVC Insulation

Packaging & Shipping

1:standard export wooden drum/steel wooden drum
2: upon your request
