2024 aobest Aluminum Interlocked AC90 Cable 1/0 AWG Perfect for Industrial

Name: 2024 aobest Aluminum Interlocked AC90 Cable 10 AWG Perfect for Industrial
Brand: Aobest
Price: 4.00 USD

Quality 2024 aobest Aluminum Interlocked AC90 Cable 1/0 AWG Perfect for Industrial for sale

Place of Origin : Henan, China

Brand Name : Aobest

Model Number : interlock armor

Insulation Material : xlpe

Type : LOW VOLTAGE

Application : Industrial

Conductor Material : Copper

Jacket : aluminum interlock

Size : 1/0 awg

interlock armor material : aluminum

MOQ : 300 meters

Price : $4.00 - $12.00/meters

Contact Now

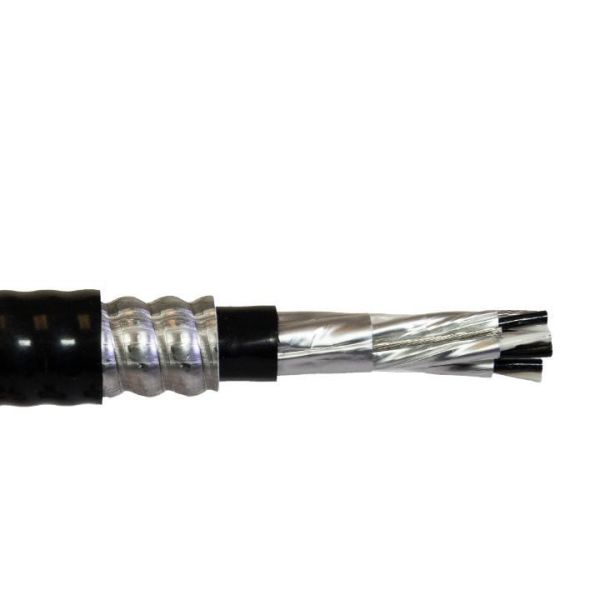

China Superior Quality interlocked Aluminum armour AC90 cable

corrugate Aluminum or Steel Interlock Armor Cable AC90 CABLE

APPLICATION: AC90 cable is for open and concealed wiring in dry locations only. For use in cable troughs and ventilated flexible cableways in dry locations. The minimum recommended installation temperature is minus 40°C. The maximum conductor temperature is 90°C. Approved for use with ceiling fixtures.

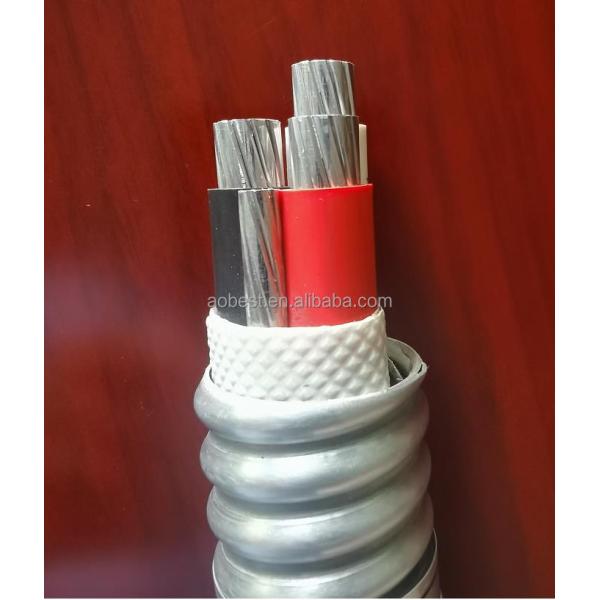

CONSTRUCTION:

Conductors: AA-8000 series aluminum alloy, compact stranded

Insulation: Cross-linked polyethylene (XLPE)

Bonding wire: Bare AA-8000 series aluminum alloy, compact stranded

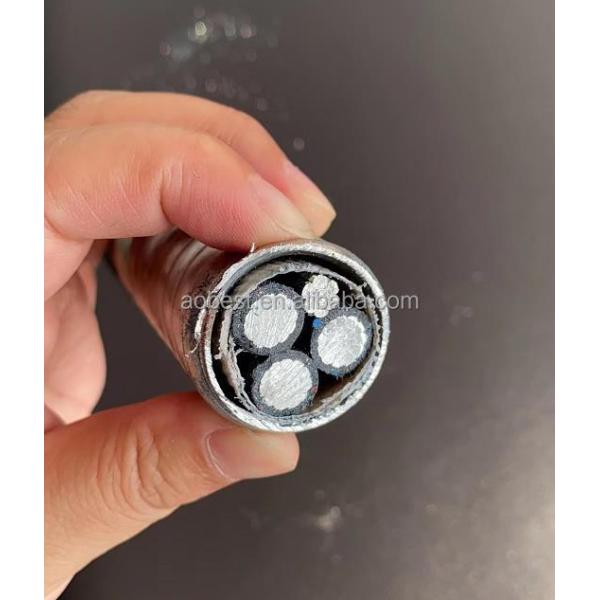

Assembly: Three insulated conductors and a bare aluminum bonding wire cabled together wrapped with a paper or mylar tape

Armor: Interlocked aluminum armor applied over the cable assembly

COLOR CODE:

· Three Conductor: Black, Red, White

SPECIFICATIONS: CSA Spec C22.2 No. 51- Armoured Cables

Conductor Size		Bonding Wire Size (AWG)	Min Average Insulation (mm)	Ref. O.D. Over Armor (mm)	Approx. Total Weight (kg/km)	Ampacity @ 90°C (amps)
(AWG)	Min # of Strands	Bonding Wire Size (AWG)	Min Average Insulation (mm)	Ref. O.D. Over Armor (mm)	Approx. Total Weight (kg/km)	Ampacity @ 90°C (amps)
Three Conductor
1	18	4	1.27	28.8	775	115
1/0	18	4	1.27	30.9	898	135
2/0	18	4	1.27	33.1	1050	150
3/0	18	4	1.27	35.8	1238	175

2024 aobest Aluminum Interlocked AC90 Cable 1/0 AWG Perfect for Industrial

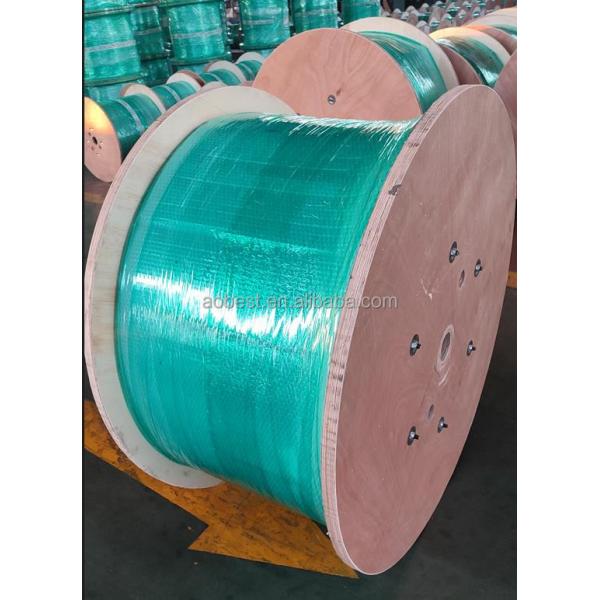

Packing of AC90 600V

for more information, pls contact Erica

aobest(@)aobest.cn

whatsapp:+86 13310857673

Wechat:+86 13316918635

2024 aobest Aluminum Interlocked AC90 Cable 1/0 AWG Perfect for Industrial Images
