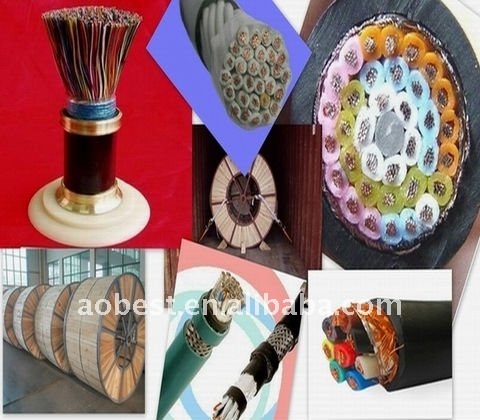

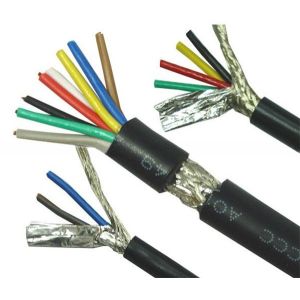

Best Choice Multiconductor Cable -- PVC Copper Shielded Braided
Application
Used as power and connecting cables in mechanical engineering for tooling machinery, control unit,
production lines, transportation equipment, conveyor and assembly lines as well as in plant construction
under the circumstance that the rated voltage is up to 450/750V AC.
Character and Relevant Parameters
1. Long-term service temperature of the cable conductor: 70 0C
2. Rated voltage: 450/750V
3. Cable lying temperature ≥0 0C
4. Cores: 2, 3, 4, 5, 6,7, 8, 10, 12, 14, 16, 19, 24, 27, 30, 37, 44, 48, 52, 61
5. Minimun bending radius:
Non armored ≥ out diameter of cable 6 times
Armored layer or copper tape shielded ≥ outer diameter of cable 12 times
Shielded layer soft cable ≥ outer diameter of cable 6 times
PVC Insulated Control Cable Parameter (Example)
| Type | Name | Section Area(mm2) | No. of Core |
| KVV | Copper Conductor, PVC Insulated and Sheathed control cable | 0.75 1.0 1.5 2.5 | 2-8 10 12 14 16 19 24 27 30 37 |
| 4.0 6.0 | 2-8 10 12 14 |
| KVVP | Copper Conductor, PVC Insulated and Sheathed, Copper-braid Screened Control Cable | 0.75 1.0 1.5 2.5 | 2-8 10 12 14 16 19 24 27 30 37 |
| 4.0 6.0 | 2-8 10 12 14 |
| KVVP2 | Copper Conductor, PVC Insulated and Sheathed, Copper-tape Screened Control Cable | 0.75 1.0 1.5 2.5 | 2-8 10 12 14 16 19 24 27 30 37 |
| 4.0 6.0 | 2-8 10 12 14 |
| KVVP2-22 | Copper Conductor, PVC Insulated and Sheathed, Copper-tape Screened Steel-tape armored Control Cable | 0.75 1.0 1.5 2.5 | 2-8 10 12 14 16 19 24 27 30 37 |
| 4.0 6.0 | 2-8 10 12 14 |
| KVV22 | Copper Conductor, PVC Insulated and Sheathed, Steel-tape armored Control Cable | 0.75 1.0 1.5 2.5 | 2-8 10 12 14 16 19 24 27 30 37 |
| 4.0 6.0 | 2-8 10 12 14 |
| KVVR | Copper Conductor, PVC Insulated and Sheathed, Flexible Control Cable | 0.75 1.0 1.5 2.5 | 2-8 10 12 14 16 19 24 27 30 37 |
| 4.0 6.0 | 2-8 10 12 14 |
| KVVRP | Copper Conductor, PVC Insulated and Sheathed, Braiding shielded Flexible Control Cable | 0.75 1.0 1.5 2.5 | 2-8 10 12 14 16 19 24 27 30 37 |
| 4.0 6.0 | 2-8 10 12 14 |
We also produce:
flame-retardant control cable, XLPE insulated control cable, XLPE insulated flame-retardant control cable, low smoke halogen free flame-retardant control cable etc.
Please contact me freely; maybe I’ll give you a big surprise. ^.^
