2024 Hot Sale PVC Insulated Steel Wire Armoured Low Voltage Multi Conductor Cable for Industrial Use Copper Material

Name: 2024 Hot Sale PVC Insulated Steel Wire Armoured Low Voltage Multi Conductor Cable for Industrial Use Copper Material
Brand: Aobest
Price: 1 USD

Quality 2024 Hot Sale PVC Insulated Steel Wire Armoured Low Voltage Multi Conductor Cable for Industrial Use Copper Material for sale

Place of Origin : Henan, China

Brand Name : Aobest

Model Number : KVVP KVVP1 KVVP2 KVV22P

Insulation Material : PVC

Type : LOW VOLTAGE

Application : Industrial

Conductor Material : Copper

Jacket : PVC

Size : 50 mm2

Product name : Copper Core PVC Insulated Electrical Power Cable

Name : pvc insulated cable

Color : Requirement

Certificate : ISO9001/ISO14001 /OHSAS18001/CCC

Standard : BS IEC ASTM DIN

Conductor : copper

Insulation : pvc

Sheath : pvc

Rated voltage : 600/1000 Volts

Core : Multi-core

MOQ : 2 kilometers

Price : $1,000.00 - $10,000.00/kilometers

Contact Now

FLEXIBLE PVC multi conductor CONTROL CABLE

1. Standard
The control cable can be produced according to the standard GB9330-1988, and the factory can also manufacture the cables in accordance with other standards.
2. Scope of Application
The control cable are suitable for the wiring of electrical controlling equipments and instruments, monitoring and controlling return circuit, electrical protection and measurement in power distribution unit under the circumstance that the rated voltage is up to 450/750V AC.
3. Service Conditions
(1)The long-time working temperature of conductor of PVC insulated control cable is 70°C
The long-time working temperature of conductor of XLPE insulated control cable is 90°C
(2) The temperature for laying the cables can not be lower than 0°C. Permissible bending radius(r): Unarmoured cable: R≥ 6D; (D: Outer diameter of the cable); Armoured or copper-tape screened cable: R≥ 12D; Shielded flexible cable: R≥ 6D

PVC Insulated Control Cable Parameter

Type	Name	Section Area(mm2)	No. of Core	Application Site
KVV	Copper Conductor,PVC Insulated and Sheathed Control Cable	0.75 1.0 1.5 2.5	2-16	Permanent installation indoors,in cable ditches or pipes
		4 6	2-14
		10	2-10
KVVP	Copper Conductor,PVC Insulated and Sheathed,Braiding Shielded Control Cable	0.75 1.0 1.5 2.5	2-61	Permanent installation indoors,in cable ditches or pipes where shielding is required
		4 6	2-14
		10	2-10
KVVP2	Copper Conductor,PVC Insulated and Sheathed,Copper-tape Screened Control Cable	0.75 1.0 1.5 2.5	4-10	Permanent installation indoors,in cable ditches or pipes where shielding is required
		4 6	7-61
		10	4-10
KVV22	Copper Conductor,PVC Insulated and Sheathed,Steel tape Armored Control Cable	0.75 1.0 1.5 2.5	7-61	Permanent installation indoors,in cable ditches,Be able to withstand stronger external mechanical force
		4 6	4-14
		10	4-14
KVVR	Copper Conductor,PVC Insulated and Sheathed,Flexible Control Cable	0.5-2.5	4-61	Installation indoors where flexibility and movability are required
KVVRP	Copper Conductor,PVC Insulated and Sheathed,Braiding shielded Flexible Control Cable	0.5 0.75 1.0	4-61	Installation indoors where flexibility shielding and movability are required

2024 Hot Sale PVC Insulated Steel Wire Armoured Low Voltage Multi Conductor Cable for Industrial Use Copper Material

Please contact me freely; maybe I’ll give you a big surprise. ^.^

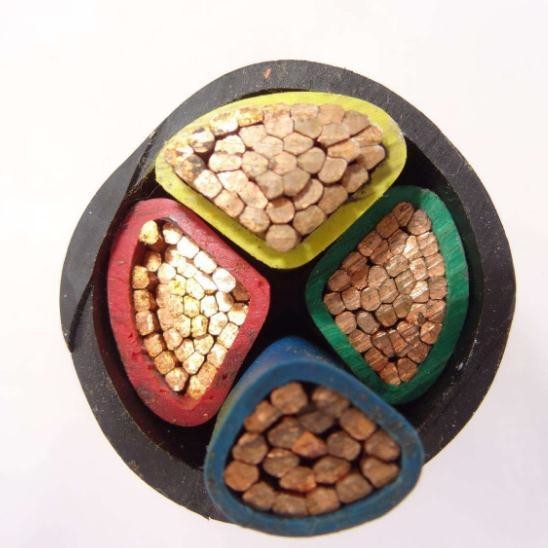

2024 Hot Sale PVC Insulated Steel Wire Armoured Low Voltage Multi Conductor Cable for Industrial Use Copper Material Images
