5000V FAA L-824 Type C Black Airfield Lighting Cables with non-sheild /screen CU/XLPE/PVC

Product Categories

Hangfan Electric Power Co.,Ltd

Contact Now

5000V FAA L-824 Type C Black Airfield Lighting Cables with non-sheild /screen CU/XLPE/PVC

Place of Origin : Henan, China

Brand Name : OEM

Model Number : YJV

Insulation Material : xlpe

Type : Medium Voltage

Application : Construction

Conductor Material : Copper

Jacket : PVC

color : Customized

size : 6AWG

Product name : Electric Cable

Certificate : ISO9001/ISO14001 /OHSAS18001/CCC

Standard : IEC60502

Package : Wooden Drum

Packaging Details : wooden drum

MOQ : 500 meters

Price : $1.90/meters

Contact Now

Product Description for the 5000V FAA L824 type C airfield lighting cable

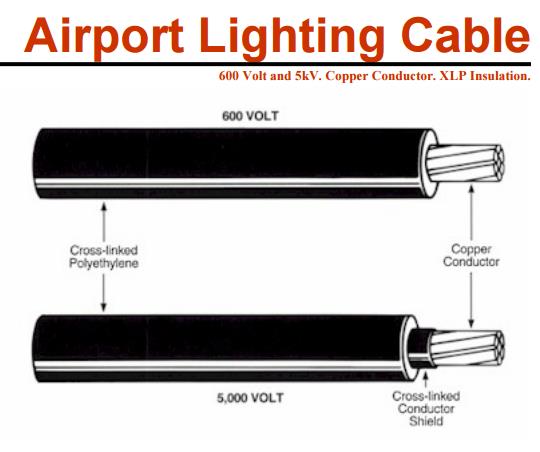

Single conductor composed of annealed, uncoated stranded copper, without a strand separator, cross-linked polyethylee insulation. Rated 600 volts or 5,000 volts as identified.

Application for the airport lighting cable

For low and medium voltage power transmission of 600 volts to 5,000 volts primarily used for airport lighting and control circuits. Cables are suitable for use in conduit, duct, aerial, and direct burial applications.

Data of Airport lighting cable:

5,000 Volt

Size (AWG)	Stranding	Insulation Thickness (mils.)	Nominal Diameter (inches)	Weight Per 1,000 Ft. (lbs.)
8	7	110	.380	95
6	7	110	.415	130
4	7	110	.465	185

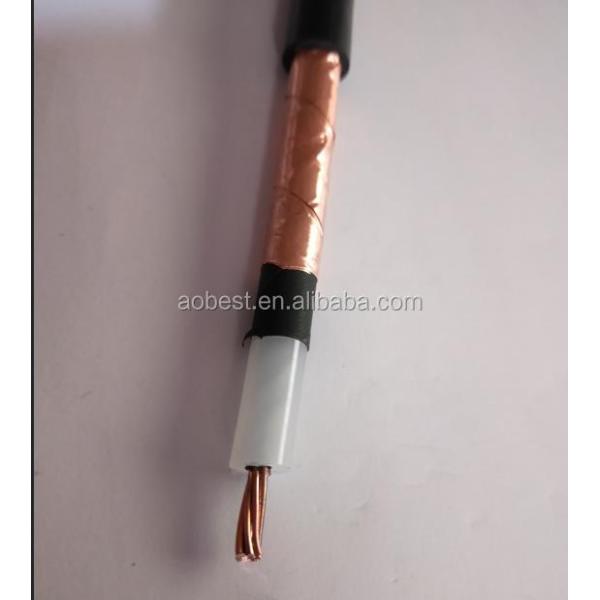

Picture;

5000V FAA L-824 Type C Black Airfield Lighting Cables with non-sheild /screen CU/XLPE/PVC
